etics systems
We present our composite thermal insulation system (ETICS) applicable to both new buildings and those to be redeveloped: Ardcoat System.
We would like to point out that our external insulation systems can be insured for a period of 10 years.
The Ardcoat System offer
The system is ETA 17/0640 certified in compliance with the requirements of the European Technical Assessment. It is a complete proposal of articles, primers and finishes for the creation of thermal insulation.
It comes from some of our exterior finishes, in which we are a leading company, selecting a wide range of products both for construction and maintenance, with the aim of satisfying every type of need. Ardcoat System guarantees aesthetic and mechanical quality that lasts over time, together with exceptional water-repellent characteristics.
THERMAL INSULATION WITH CE MARKING
ETA EPS
Thermal insulation with closed-cell expanded polystyrene sheets, also with added graphite.
ETA STIFERITE
Coming soon
ETA ROCK WOOL
Coming soon
ARDCOAT SYSTEM CYCLE WITH EPS PANELS
Thermal insulation cycle with prefabricated polystyrene (EPS) panels
After fixing the starting profiles, lay the corresponding EPS panels with staggered joints, gluing them with grey carbonate smoothing adhesive, distributed along the perimeter of the panel and for central points (minimum gluing surface 40% of the surface). After at least 48 hours, fix the panels with suitable plugs (T-structure and number not less than 6/m² and 8 for the perimeter areas). Glue the edge protectors with smoothing adhesive and add the finishing accessories (closures, guides, profiles, drip guards, self-expanding sealing tapes, expansion joints, fixing inserts, sheet metal, etc.) where necessary. Position diagonal reinforcements in correspondence with the openings (windows, doors, etc.), smooth the sheets by incorporating a 150 g/m² fibreglass reinforcement mesh into the wet smoothing adhesive and smooth again. After the reinforced plaster has dried and hydrated completely, apply a base coat in a similar color to the finish and finish, sanding it with a plastic trowel. The color must be chosen from those indicated for external insulation systems in our Tinte d’Italia fandeck.
1. Bonding the smoothing adhesive
2. Laying of isolating panels
3. Mechanical fixing
4. Positioning of perforated PVC corner guards
5. 1^ shaving
6. Net drowning
7. 2^ shaving
8. Primer
9. Finish
Ardcoat C8/C8W
Carbonate filler adhesive for thermal insulation systems,compliant to ead 040083-00-0404 requirements

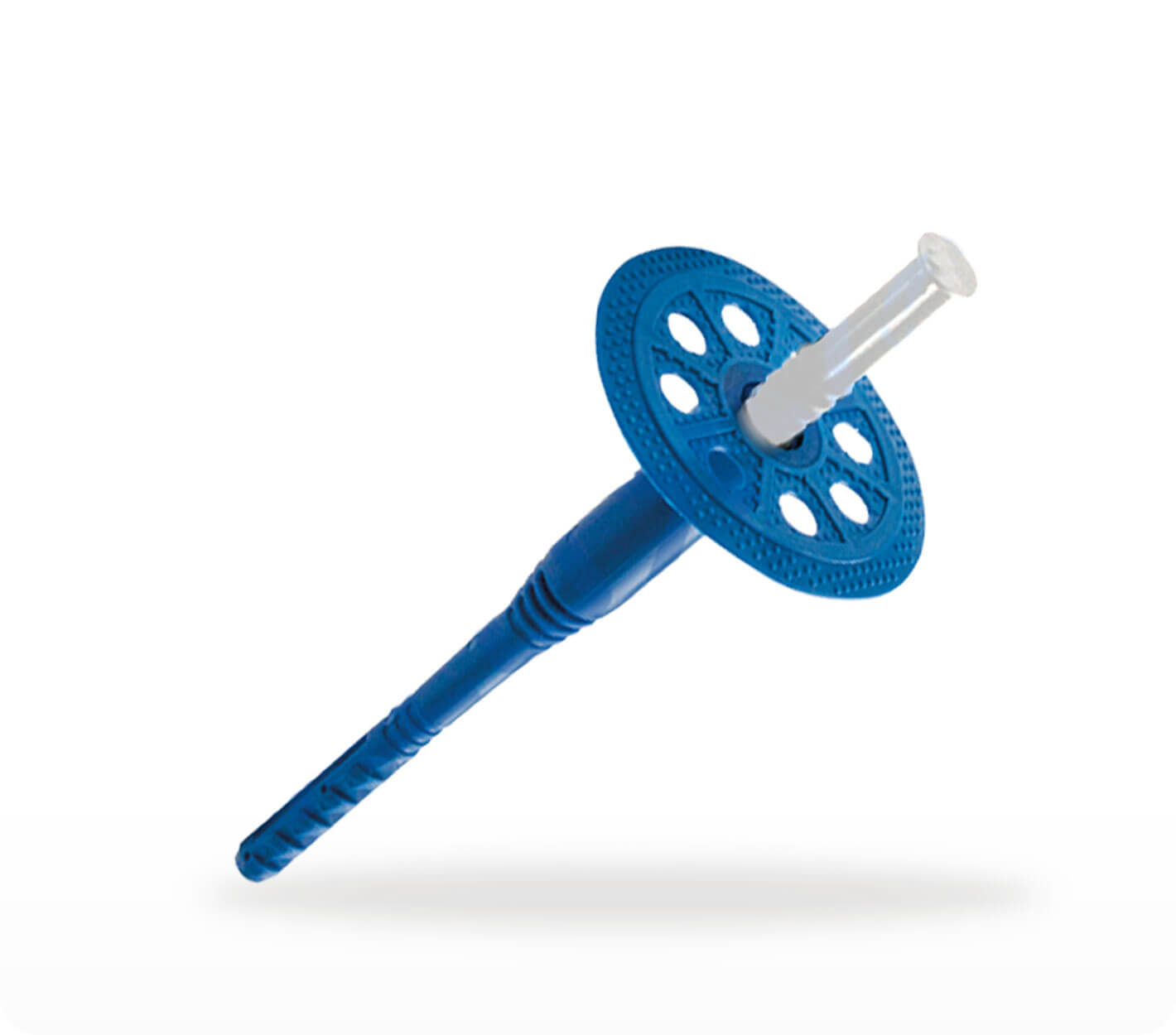

Tassello FIX PLUG 8
Tasselli a percussione in polipropilene diametro 8 mm con chiodo preassemblato in nylon caricato fibra di vetro PA6 GF50.
Ardcoat C8/C8W
Carbonate filler adhesive for thermal insulation systems,compliant to ead 040083-00-0404 requirements
Ardcoat C8/C8W
